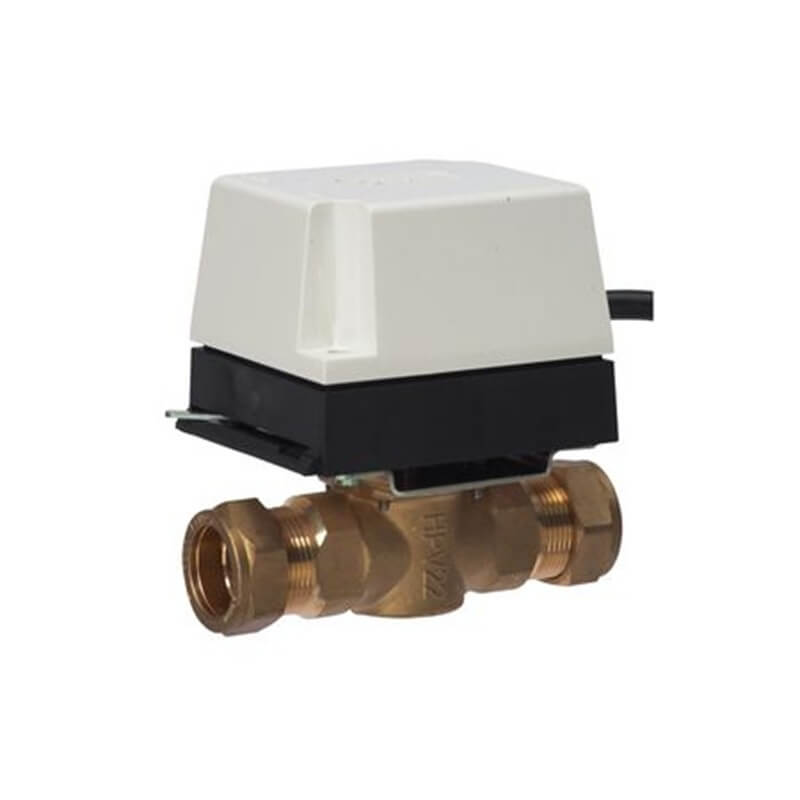

Danfoss HP22 2-Port Motorised Zone Valve 22mm Brass White 087N6609
The Danfoss HP22 2-Port Zone Valve features a 22mm compression fit, self-cleaning brass shoe type valve, and a spring-return actuator for central heating and hot water circulation.
- All prices include VAT
- Estimated Delivery: For most items (over 99% of our products), orders placed before 3pm on working days will be dispatched the same day with our Fast DELIVERY 1st class service. For the rare items not immediately in stock, dispatch may take 1-3 working days after receiving your order. If your order cannot be dispatched the same day, we will notify you via email.
- For boilers: We aim to dispatch on the next working day. However, in some cases, it may take 2-3 working days to dispatch. Rest assured, we will always strive for the fastest possible turnaround.
The Danfoss HP22 2-Port Motorised Zone Valve is built to deliver precise water flow control in domestic central heating and hot water systems. Designed with a high-capacity self-cleaning shoe valve mechanism, it supports bi-directional flow and integrates easily with 22mm copper or iron pipework.
This model comes with a spring-return actuator, auxiliary switch, and manual override lever for added flexibility during installation and system filling. Engineered to work with a wide range of heating applications, the HP22 ensures reliable, responsive performance under demanding pressure and temperature conditions.
Key Features
• 22mm Compression Fittings – Fits standard copper piping for seamless installation
• Self-Cleaning Shoe Valve – Ensures dependable shut-off with minimal maintenance
• Spring-Return Actuator – Automatically resets to closed position for safety and efficiency
• High Flow Rate – 8.2 m³/h with max 10 bar pressure capacity
• Manual Override Lever – Useful for system filling and maintenance
Applications
• Central Heating Systems – Controls hot water flow through radiators
• Hot Water Circulation – Reliable performance for domestic hot water zoning
• Replacement Installations – Compatible with actuators from other valve brands
Technical Specifications:
| Feature | Details |
|---|---|
| Brand | Danfoss |
| Product Name | HP22 2-Port Motorised Zone Valve |
| GTIN | 5013567062201 |
| Product Code | 087N6609 |
| Material | Brass |
| Finish | White |
| Size | 22mm |
| Flow Coefficient (Kvs) | 8.2 m³/h |
| Max Operating Pressure | 10 bar |
| Max Differential Pressure | 1 bar |
| Operating Temperature | 95°C |
| Voltage | 230V |
| Power Supply | Electric |
| Connection Type | 22mm Compression |
| Weight | 966g |
